IP67 Non-contact Object Detection Magnetic Proximity Sensor 12v with SUS303 Shell Material for Industrial Automation

Name: IP67 Noncontact Object Detection Magnetic Proximity Sensor 12v with SUS303 Shell Material for Industrial Automation
Brand: Makinopc
Price: 68.72 USD

Buy cheap IP67 Non-contact Object Detection Magnetic Proximity Sensor 12v with SUS303 Shell Material for Industrial Automation product

Response time : 5μ sec

Magnetic sensitivity : 0.5±0.1mT

Shell material : SUS303

Supply Voltage : DC5~24V

Place of Origin : Guangdong, China

Magnetic detection direction : Forward

Indicator light : Red color

Output current : 12mA MAX

Protection class : IP67

weight (kg) : 0.5

Brand Name : Makinopc

warranty : 1 Year

Current consumption : 15mA MAX

Detection Poles : S pole

Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine

MOQ : 1 piece

Price : $68.72-74.65 / piece

Contact Now

Products Description

Makinopc's Magnetic proximity sensors are used for non-contact object detection beyond the normal limits of inductive sensors. Our magnetic sensors deliver reliable, accurate data to help control your system.

Key Features

●Magnetic proximity sensors are sensors that operate ON and OFF according to changes in the strength of the magnetic field. ●The operating principle is the Hall principle, which detects the magnetic field according to its polarity, and the standard detection pole is the S pole. ●Because of the short response time (5μsec or less), it can also be used for tachometers and speedometers. ●Compared with general proximity sensors, it is characterized by high sensitivity, large detection distance, and small size. ●Can perform both home position and over-travel detection of servo mechanisms with only one dual sensor. ●Strong resistance to electromagnetic interference and high reliability.

Product Paramenters

Supply Voltage	DC5～24V
Detection Poles	S pole
Magnetic sensitivity	0.5±0.1mT
Magnetic detection direction	Forward
Output mode	NPN normally open (ON when close)
Output current	12mA MAX
Current consumption	15mA MAX
Response time	5μ sec
Withstanding Voltage	AC1000V
	(1 minute, between the whole charging part and the case)
Insulation resistance	DC250V
	(20MΩ or more, between the whole charging part and the case)
Operating Ambient Temperature	-20℃～+85℃ (no condensation)
Humidity	20～95%RH
Wire Specification	φ2.8×1m
Shell material	SUS303

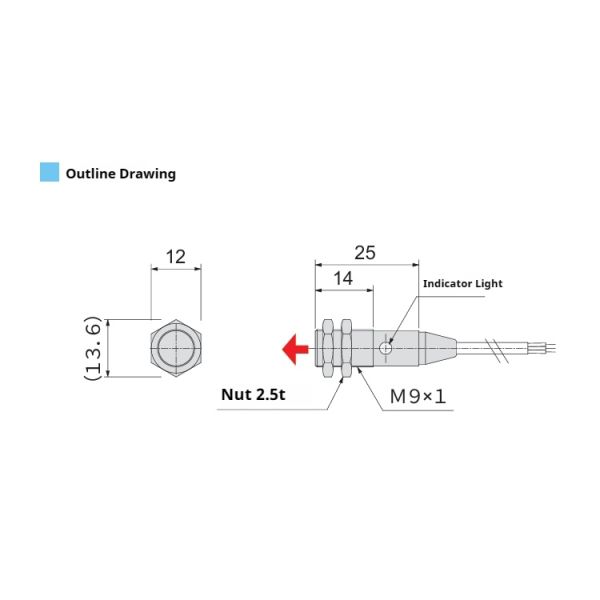

Installation	M9 nut Tightening torque 5N-m
Mounting aperture processing size	φ9 +0.5 / 0
Indicator light	Red color
Protection Class	IP67

※Output conversion and current increase can be realized by wire attachment.

Details Images

IP67 Non-contact Object Detection Magnetic Proximity Sensor 12v with SUS303 Shell Material for Industrial Automation

※Output conversion and current increase can be realized by wire attachment.
