Brand Name : MAKINOPC
Core Components : Housing/Nut/Operating Rod:SUS303
warranty : 1 Year
Condition : New
Place of Origin : Japan
weight (kg) : 0.5
machinery test report : Not Available
video outgoing-inspection : Provided
MOQ : 1 piece
Machine Type : Punching Machine, Milling Machine, lathe machine, Grinding Machine
Supply Voltage : DC5~24V
Marketing Type : Ordinary Product
Price : $12-20 / piece
Supply Voltage | DC5~24V |
Stroke | 5mm |
Operating force | 0.25N |
Repeat positioning accuracy | ±0.06mm |

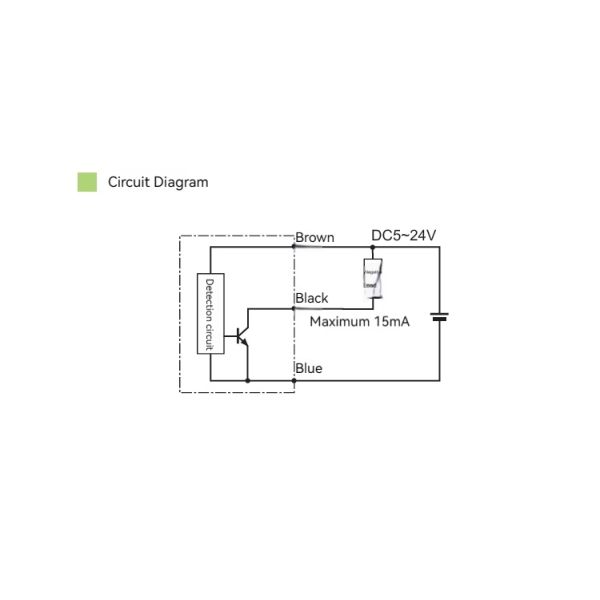

Output method | NPN Normally Open (ON for proximity) |
Output current | 15mA MAX |
Consumption current | 12mA MAX |
Operating Frequency | 60 times/min or less |
Withstanding Voltage | AC1000V |
(1 minute, between the whole charging part and the case) | |
Insulation resistance | DC250V |
(20MΩ or more, between the whole charging part and the case) | |
Operating Ambient Temperature | -20°C~+85°C (no condensation) |
Working environment humidity | 20~95%RH |
Wire specification | Φ2.8x1m Gray |
Probe Material | SUS |
Installation | M3 nut, tightening torque 0.3N-m |
Protection class | IP65 |







|
|

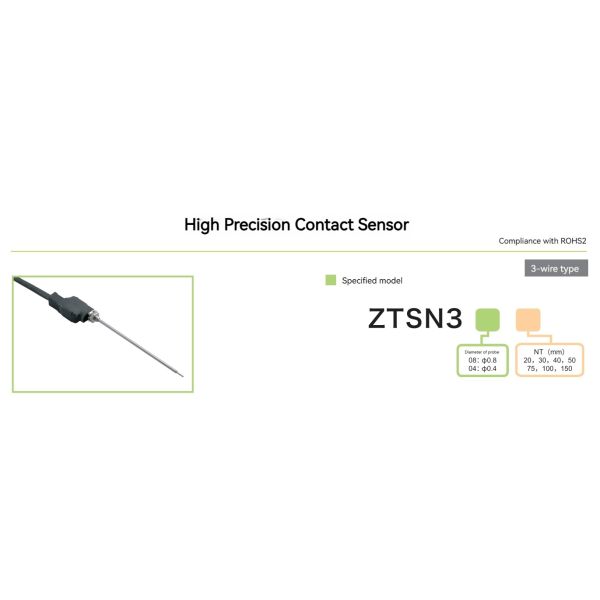

IP65 Japan Original ZTSN3 Machine Tool Automatic Sensor Contact Long Probe CNC Machining Center Stylus Images |
